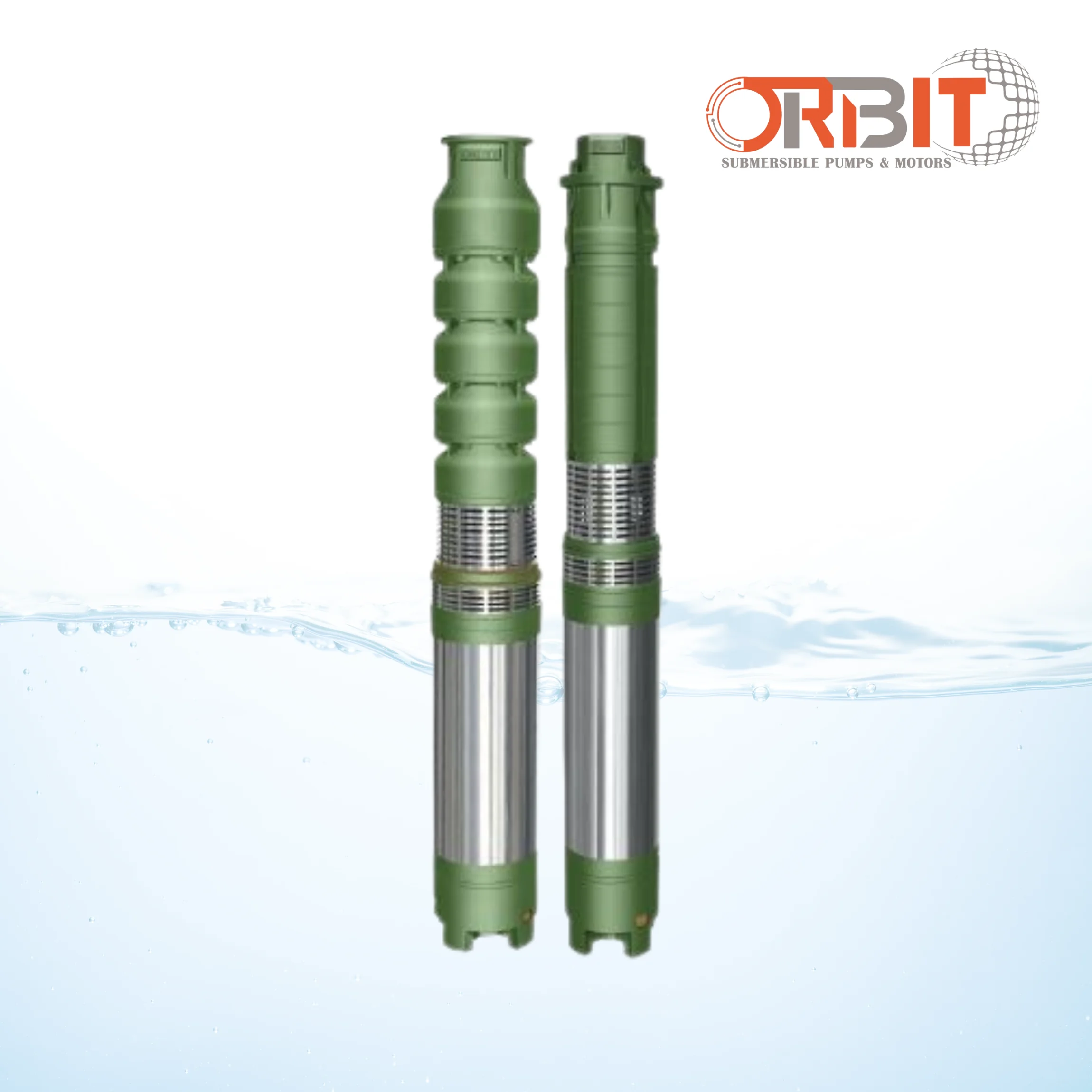

V5 Submersible Pump

Submersible Pumps

V5 Submersible Pump

The V5 Submersible Pump offers high efficiency and durability, designed to handle larger applications. With water-lubricated radial and thrust bearings and a corrosion-resistant stainless steel stator shell, this pump guarantees consistent performance. Its wide power range of 3 HP to 12.5 HP makes it suitable for gardens, fountains, and industrial water systems. The pump’s advanced engineering ensures optimal performance with reduced operating costs.

Orbit Submersible Pumps combine cutting-edge technology and high-quality materials to deliver unmatched performance and reliability across a range of applications.

V5 SUBMERSIBLE PUMP	SPECIFICATION
Connecting Piece	C.I Casting
Upper & Lower Housing	Graded C.i Casting
Motor Base	S.S Casting
Stator Shell	S S 304
Motor Shaft	S S 420
Winding Wire	Poly Propylene or PVC insulated
Degree Of Protection	IP 68
Max Water Temperature	35*C

PRODUCT	SPECIFICATION
Nos. Of Start Per Hour	Max 20 At Regular Intervals
Voltage Variation	+6%/ -10% At Rated Voltage
Max Depth Immersion	250 Metres.
Maximum Outer Dia.	120 mm
Power Range	4 Hp to 12.5 Hp – Three Phase 3 Hp to 5 Hp – Single Phase
Voltage Range	380-400-415 volt – 50hz 180-215 volt – 50hz
Speed	2900 RPM

Orbit Submersible Motors are robust Rewindable and pre-filled with Clean water mixed with non-toxic eco-friendly anti-corrosion fluid.
Fully Stainless Steel Component.
Stator Shell With Corrosion Resistant Stainless Steel.
Bearing: Water Lubricated Radial And Thrust Bearing.
Shaft extension made of Stainless Steel AISI 420.
High Efficiency Electrical Design For Lower Operating Cost.
Pressure Compensation Disphragm.

Orbit submersible motors are suitable to couple with deep well submersible pump used for:
