Centrifugal Monoblock Pump

Centrifugal Monoblock Pump

The Centrifugal Monoblock Pump combines efficiency and reliability, featuring a single-unit design that eliminates coupling and alignment issues. It is ideal for agricultural irrigation, water supply systems, and industrial applications. With its robust construction and energy-efficient performance, this pump ensures smooth operation and reduced operational costs.

Orbit Submersible Pumps provides innovative and reliable products tailored to meet diverse water management needs. Choose from our range of high-quality motors and pumps to experience performance, durability, and efficiency at its best.

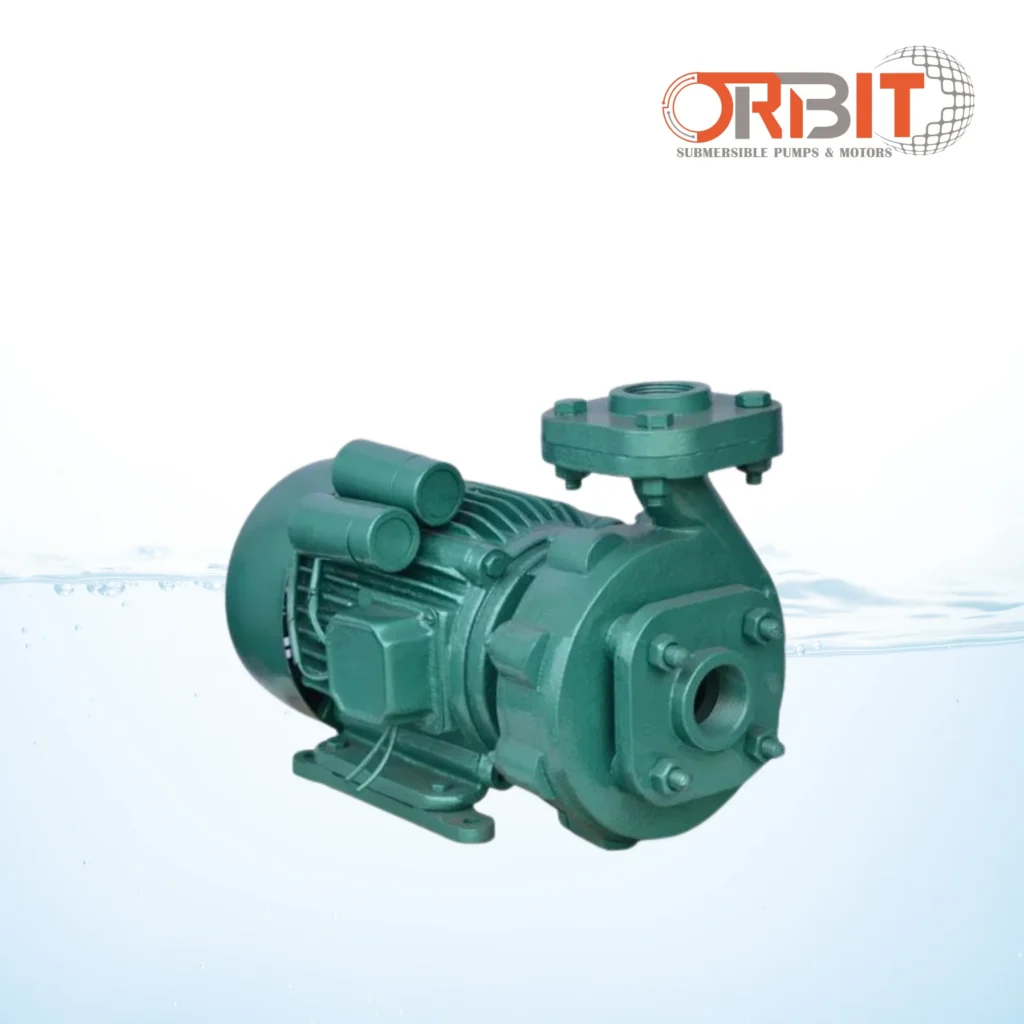

Orbit-Monoblock-pumps
MONOBLOCK PUMP SPECIFICATION
Power Range
0.5 HP to 5.0 HP
Head range
up to 32 meters
Discharge Capacity
up to 1940 LPM
Available in Pipe Size
25X25 to 100X100 mm
Equipped with
Thermal Over Load Protector
Monoblock Pump Material of Construction
Motor Body
Cast Iron (FG 200)
Casting
Cast Iron (FG 200)
Impeller
Cast Iron (FG 200)
Stamping
Electrical Sheel Steel
Rotor
Electrical Sheet & Alu. Die Cast
Shaft
Carbon Steel (EN-8)

Orbit submersible motors are suitable to couple with deep well submersible pump used for:
