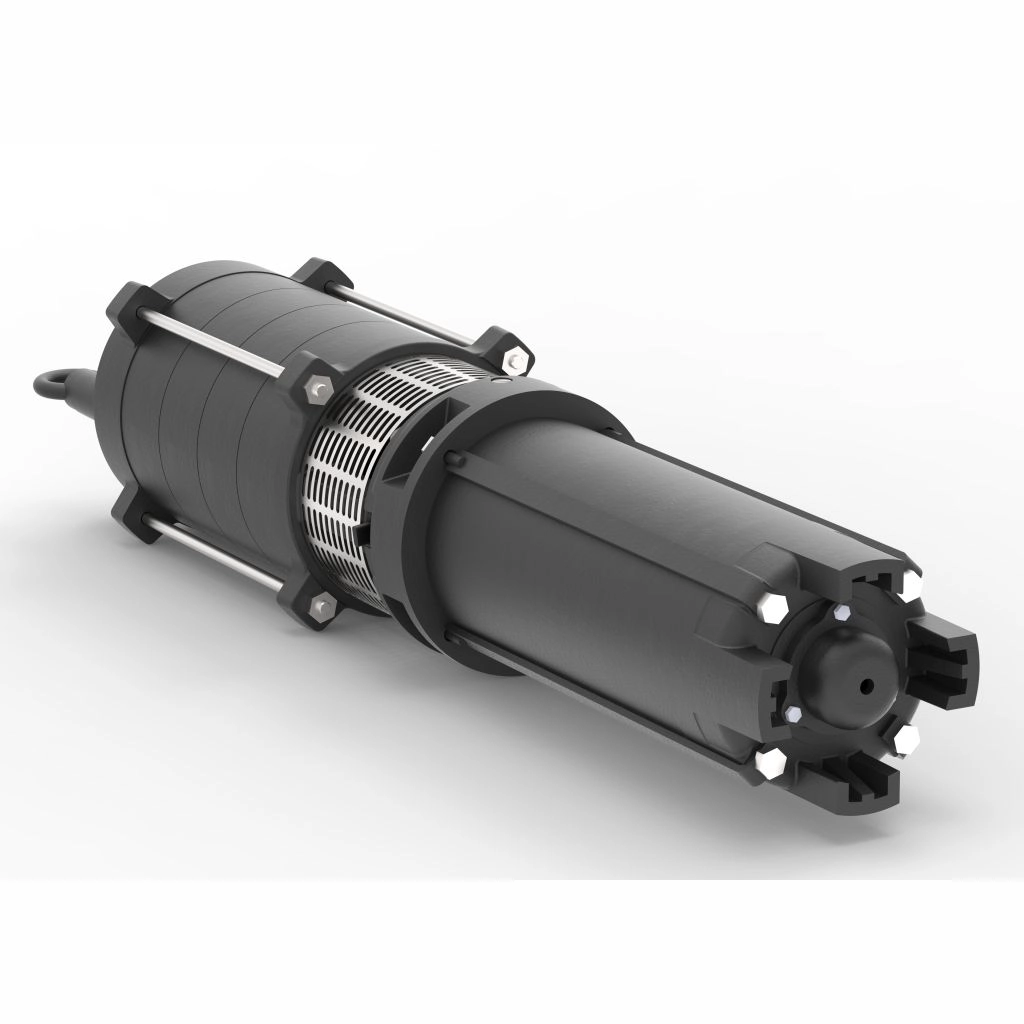

Vertical Openwell Submersible Pump

Upgrade your water pumping system with the advanced Vertical Openwell Submersible Pump from Orbit Submersible Pumps. Engineered for efficient and reliable water lifting from open wells, tanks, canals, reservoirs, and water storage applications, these pumps are designed for continuous performance with low power consumption and high discharge efficiency.

Our Vertical Openwell Submersible Pumps are manufactured using premium-grade materials and advanced engineering technology to ensure long-lasting performance, corrosion resistance, and smooth operation even under fluctuating water levels.

Ideal for agriculture, residential, industrial, commercial, and civil water supply applications, Orbit pumps deliver dependable operation with superior hydraulic efficiency and robust construction.

Technical Specifications

Specification	Details
Flow Range	Up to 54 m³/h
Head Range	Up to 141 meters
Power Rating	0.5 HP to 20 HP
Speed	2900 RPM
Voltage	Single Phase & Three Phase
Frequency	50 Hz
Insulation Class	B / F Class
Protection	IP58
Cooling Type	Water Cooled

Material of Construction

Motor Body	Material
Motor Body	Cast Iron
Impeller	Graded Cast Iron / Stainless Steel
Shaft	Stainless Steel / Mild Steel
Bearings	Water Lubricated Bearings
Winding	PVC / Polyester Insulated Copper Winding
Rotor	Dynamically Balanced
Casing	High Grade Cast Iron
Coating	Anti-Corrosive Epoxy Coated

High operating efficiency ensures maximum water discharge with lower electricity consumption.
Heavy-duty sleeve and thrust bearings provide longer service life and smooth operation.
Dynamically balanced rotating parts reduce vibration and improve bearing life.
Designed to withstand wide voltage fluctuations for reliable performance.
Precision machined components ensure durability and consistent performance.
Stator and rotor are vacuum impregnated and epoxy coated for superior corrosion resistance.
Compact vertical design suitable for open wells, tanks, and water reservoirs.
Robust cast iron construction for heavy-duty applications.
Low maintenance and easy installation.
Every pumpset is fully tested before dispatch for quality assurance.

The Vertical Openwell Submersible Pump is widely used in:

Export Vertical Openwell Submersible Pumps

Best Vertical Openwell Submersible Pump Manufacturer in India

Orbit is a trusted manufacturer and supplier of Vertical Openwell Submersible Pumps in India, offering premium quality pumps for agricultural, domestic, industrial, and commercial applications. Our pumps are designed for superior efficiency, high head performance, and long-lasting durability.

Whether you need a pump for irrigation, water supply, fountains, or construction sites, Orbit Openwell Pumps provide reliable operation with excellent energy savings.
