V6 Submersible Pump

Submersible Pumps

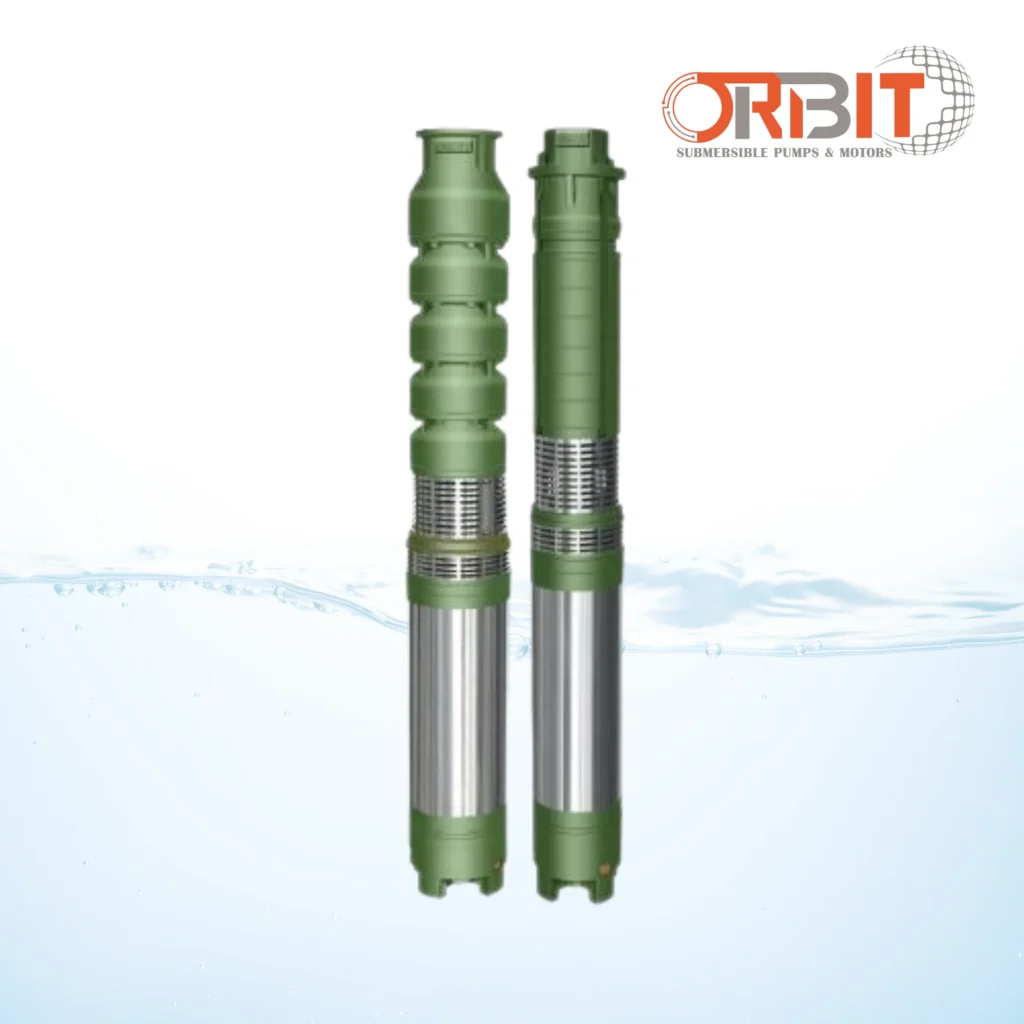

V6 Submersible Pump

Designed for demanding applications, the V6 Submersible Pump combines precision engineering with heavy-duty construction. It features graded cast iron housing, SS 420 shafts, and PVC-insulated winding wire, ensuring reliable operation even in harsh conditions. The pump supports an extensive power range of 3 HP to 30 HP and operates efficiently up to a depth of 300 meters. Applications include mining, oil and gas industries, irrigation, and de-watering systems.

Orbit Submersible Pumps combine cutting-edge technology and high-quality materials to deliver unmatched performance and reliability across a range of applications.

V6 SUBMERSIBLE PUMP	SPECIFICATION
Connecting Piece	C.I Casting
Upper & Lower Housing	Graded C.i Casting
Motor Base	S.S Casting
Stator Shell	S S 304
Motor Shaft	S S 420
Winding Wire	Poly Propylene or PVC insulated
Degree Of Protection	IP 68
Max Water Temperature	35*C

PRODUCT	SPECIFICATION
Nos. Of Start Per Hour	Max 20 At Regular Intervals
Voltage Variation	+6%/ -10% At Rated Voltage
Max Depth Immersion	300 Metres.
Maximum Outer Dia.	142 mm
Power Range	3 Hp to 30 Hp – Three Phase 3 Hp to 7.5 Hp – Single Phase
Voltage Range	380-400-415 volt – 50hz 180-215 volt – 50hz
Speed	2900 RPM

Orbit Submersible Motors are robust Rewindable and pre-filled with Clean water mixed with non-toxic eco-friendly anti-corrosion fluid.
Fully Stainless Steel Component.
Stator Shell With Corrosion Resistant Stainless Steel.
Bearing: Water Lubricated Radial And Thrust Bearing.
Shaft extension made of Stainless Steel AISI 420.
High Efficiency Electrical Design For Lower Operating Cost.
Pressure Compensation Disphragm.

Orbit submersible motors are suitable to couple with deep well submersible pump used for:

Export v6 Submersible Pump

Global Solutions: We Export v6 Submersible Pumps

At Orbit Submersible Pump Sets, we are proud to export the advanced EXPORT v6 Submersible Pump to clients across the globe. Engineered for superior performance, reliability, and energy efficiency, the EXPORT v6 is ideal for heavy-duty applications in agriculture, industrial processes, and water supply systems. With robust construction and cutting-edge technology, our pumps ensure durability and consistent operation, even in the toughest environments.

Trust us to deliver world-class pumping solutions that empower industries and communities worldwide.
